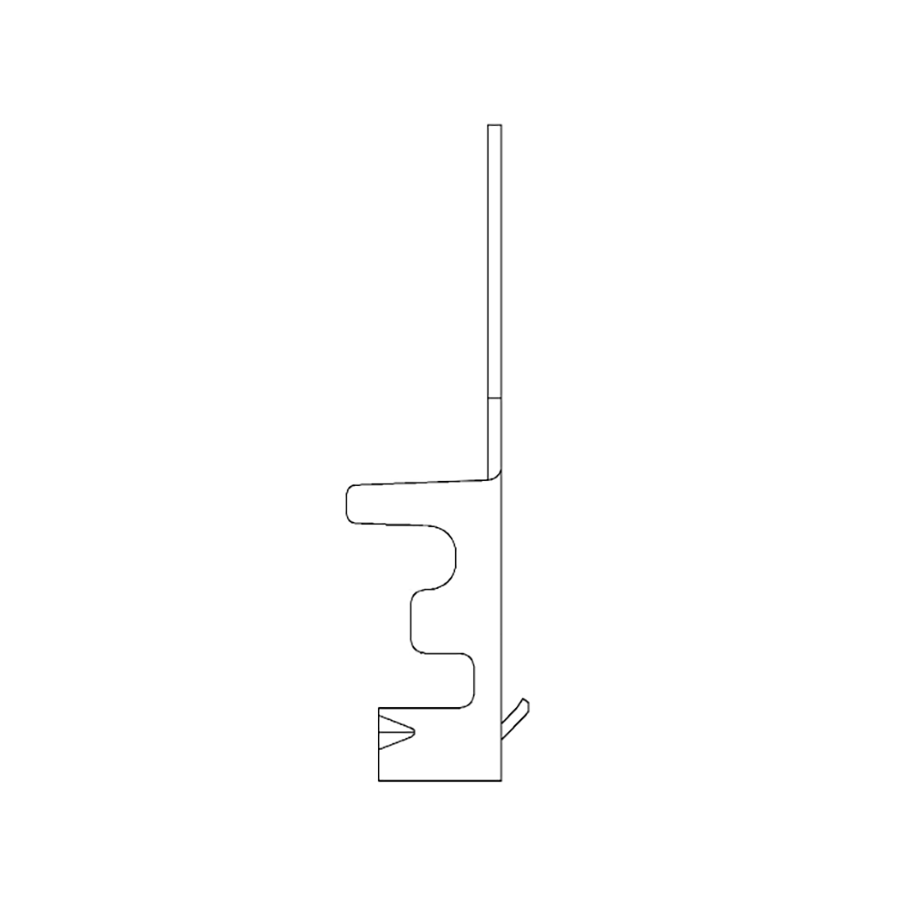

1734193-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1734193-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket Pitch:1.2446 mm
| Parameter | Value |
|---|---|
| Length | 3.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.7 mm |
| Packaging | Reel |
| Depth | 1.3 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1.2446 mm |
| Current Rating | 800 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 32 AWG to 28 AWG |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 32 AWG |
| Plating | Tin |
| Plating Thickness | 2 µm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Style | Crimp |
Stock: 47586
Distributors
pcbx
pcbxUnit Price$0.09770
Ext.Price$0.09770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09770 | $0.09770 |
| 10 | $0.04885 | $0.48850 |
| 50 | $0.03758 | $1.87900 |
| 100 | $0.02891 | $2.89100 |
| 500 | $0.02605 | $13.02500 |
| 1000 | $0.02347 | $23.47000 |
| 3000 | $0.02068 | $62.04000 |
| 5000 | $0.01980 | $99.00000 |
| 10000 | $0.01896 | $189.60000 |
| 30000 | $0.01815 | $544.50000 |
| 50000 | $0.01738 | $869.00000 |
| 100000 | $0.01663 | $1663.00000 |
